Tong Dies in the Oil Industry

If you’re working on an oil rig, you know how important it is to have reliable tong dies. These replaceable gripping inserts are used in both manual and power tongs, and they play a vital role in making up (tightening) or breaking out (loosening) connections between pipe sections during drilling operations.

Function and Design

Tong dies are crafted from hardened metal and feature aggressive teeth patterns or gripping surfaces. When pressure is applied, these teeth bite into the pipe surface, allowing you to transfer significant torque without slipping or causing unnecessary damage to the pipe. The right tong die will help you get the job done efficiently and safely, every time.

How Tong Dies Work

Install the tong dies in the jaws of your manual or power tongs.
As the tongs close around a pipe joint, the dies engage with the pipe surface.
Applying force to the tong handles (for manual tongs) or increasing hydraulic pressure (for power tongs) causes the dies to bite into the pipe.
This secure grip lets you apply the torque needed to properly make up or break out threaded connections between pipe sections.

Types and Characteristics

You’ll find different die types for various pipe sizes and materials, including drill pipe, casing, and tubing.
Harder dies with more aggressive teeth are best suited for tougher pipe materials.
Some dies feature curved faces to match the pipe’s curvature, giving you better contact and grip.
Most dies are made from hardened alloy steel, and some come with special coatings or treatments for added durability.

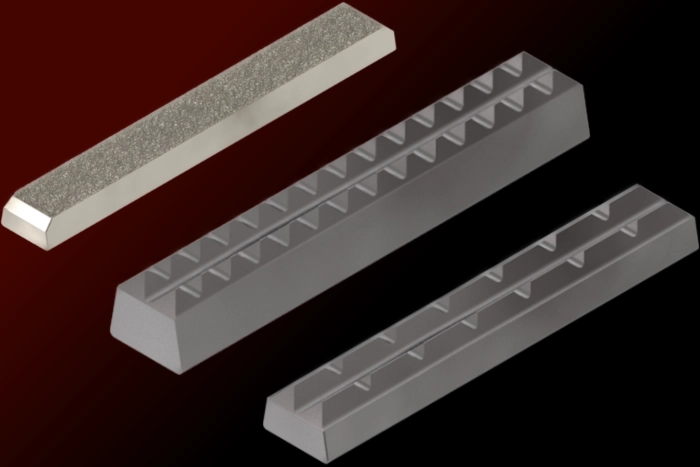

Teeth patterns vary—straight, cross-hatched, and diamond patterns are all available to match your specific needs.

Tong dies are consumable parts, and they do wear down over time. Regular inspection and timely replacement are key to maintaining a strong grip and keeping your operations safe. Worn dies can slip, which not only puts your crew at risk but can also damage connections and equipment.

Choosing the right tong dies and keeping them in good condition is a critical part of safe and efficient drilling on any oil rig. If you have questions or need a quote, we’re here to help.
